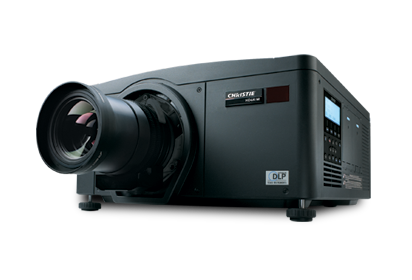

The Christie® DWX600-G offers unsurpassed value and is a perfect fit for a variety of applications. Its single lamp design lowers total cost of ownership by reducing maintenance and energy cost.
- single-lamp design
- 1-chip DLP® technology for excellent image quality and reliability
- built-in color matching for a more uniform image in a multiple projector configuration
- blending and warping capabilities for curved surfaces
- 24/7 use capability
- 2,000 hours long lamp life contributes to a low cost of ownership
- filter-free and dust-sealed for low maintenance and costs
- eco-friendly features
- Dynamic Contrast, which enhances images by increasing the contrast ratio to 4800:1
- an optional wireless module for device flexibility and easy presentation set up
- DICOM simulation
| Technology |
1-chip DLP |
| Resolution |
WXGA 1280 x 800 |
| Brightness |
6,400 center lumens |
| Contrast |
Up to 5000:1 |
| Illumination |
465W NSH |
| Lamp life |
2000 hrs minimum @ 465W
2500 hrs typical @ 360W |
| Length |
15.28″ (388mm) |
| Width |
17.13″ (435mm) |
| Height |
8.15″ (207mm) |
| Weight |
45.2 lb (20.5 kg) |
| Brightness |
- 6,400 center (6,150 ANSI) lumens
|
| Contrast |
- 4000:1 (dynamic contrast enabled)
- 1000:1 (full on/ full off)
- 250:1 (ANSI)
|
| Display technology and resolution |
- 1-chip 0.65″ DMD
- 1280 x 800 WXGA
|
| Lamp |
- 465W NSH
- 2000 hrs minimum @ 465W
- 2500 hrs typical @ 360W
|
| Inputs |
-
Standard
- 1x HDMI
- 1x DVI-D (digital only)
- 1x DisplayPort
- 1x HD15
- 1x RCA (composite video)
- 1x S-Video (mini DIN)
- Component video (RCA)
- 1x USB (type B mini) – display over USB
- 1x USB (type A) – image viewer or Wi-fi dongle (optional)
- 1x RJ45
-
Signals
- HDTV formats VGA through to WUXGA (1920 x 1200)
- Horizontal and vertical scaling while maintaining aspect ratio, all inputs
|
| Pixel clock |
|
| Scan rates |
- Horizontal: 15 kHz to 100 kHz
- Vertical: 24 kHz to 85 kHz
|
| Outputs |
|
| Control and networking |
- RS232 in
- Ethernet (10/100) RJ45 with ChristieNET™ connectivity
- Build-in backlit keypad
- Wired remote control (3.5mm stereo) – wire not included
|
| Optical system |
- Tool-free lens insertion system
- Boresight adjustable
- Motorized zoom, focus and lens shift
|
| Lenses |
- 1.22-1.52:1 (HD) zoom lens (included)
- 1.52-2.89:1 (HD) zoom lens (optional)
- 0.95-1.22:1 (HD) zoom lens (optional)
|
| Offsets |
- Vertical: +/- 100% (+/- 600 pixels)
- Horizontal: +/-20% (+/-192pixels)
|
| Standard accessories |
- IR remote w/ wired remote jack (wire not included)
- AC line cord for projector head
- User manual
|
| Optional accessories |
- 1DWUSB-BGN (Wireless dongle)
- Warp module
- Cable cover
- Ceiling mount
- Ceiling mount extension
|
| Power requirements |
- Operating voltage: 100 VAC to 240 VAC @ 50/60 Hz
- Operating current: 6.5A max
- Power consumption: 580W max, 450W eco mode
- Dissipation: 1979 BTU/hr max, 1535 BTU/hr eco mode
|
| Dimensions and weight |
- Size: (L x W x H): 15.28 x 17.13 x 8.15” (388 x 435 x 207 mm) without feet
- Shipping size: 23.27 x 23.03 x 17.44″ (591 x 501 x 443mm)
- Weight: 33.7 lb (15.3 kg)
- Shipping Weight: 45.2 lb (20.5 kg)
|
| Operating environment |
- Temperature: 40 – 95°F (5 – 35°C)
- Humidity: 10 – 85% non-condensing
|
| Regulatory approvals |
- UL/CSA/IEC 60950-1
- FCC Class A, CE, CCC, KC, EAC, PSE, CU, SABS, BIS and RCM
- This product conforms to all relevant European directives, standards, safety, health and environmental concerns
- This product is designed to comply to the rules and regulations required for the product to be sold in various regional markets, including USA/Canada, EU, Norway, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, India, Russia, South Africa and Saudi Arabia
- RoHS, REACH, WEEE
|
| Limited warranty |
- 3 years parts and labor (including light engine)
- Contact an authorized Christie representative for full details of our limited warranty
|
